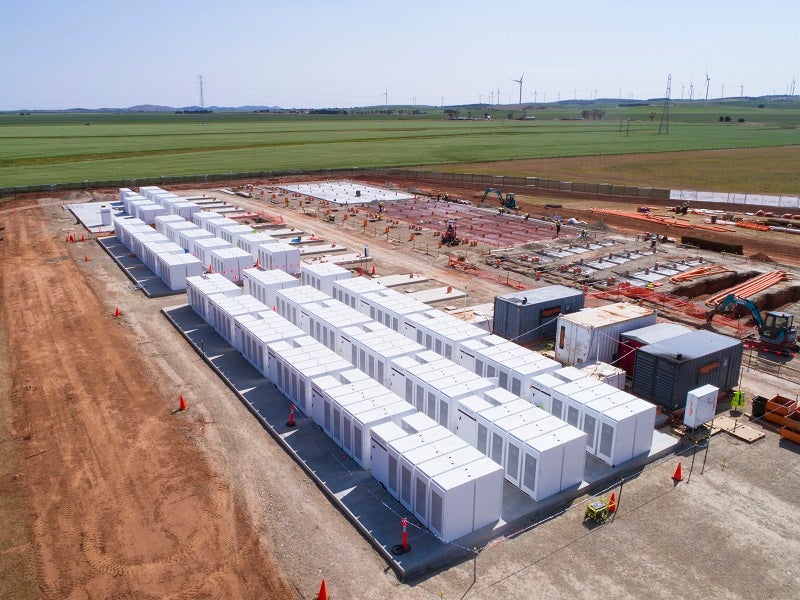

Hornsdale Power Reserve is being expanded with 50MW capacity. Image courtesy of Government of South Australia.

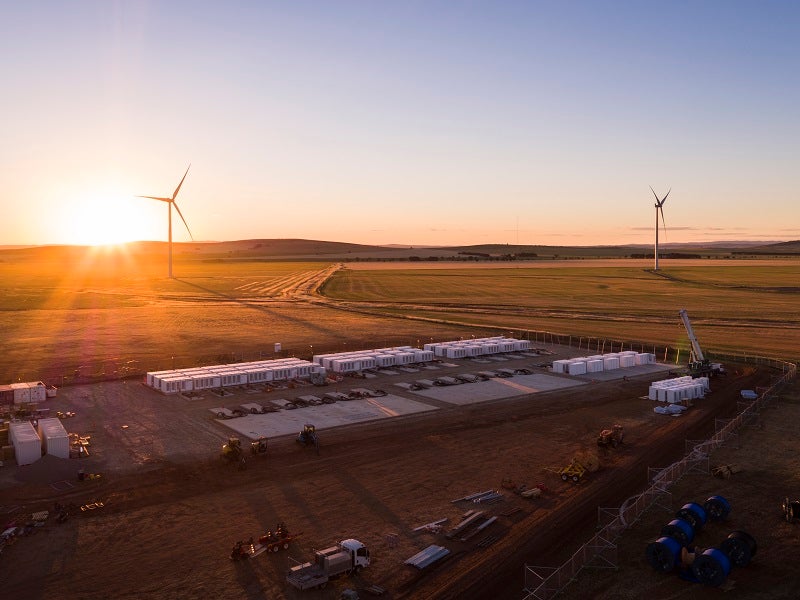

The Hornsdale Power Reserve expansion will ensure grid stabilisation. Image courtesy of Government of South Australia.

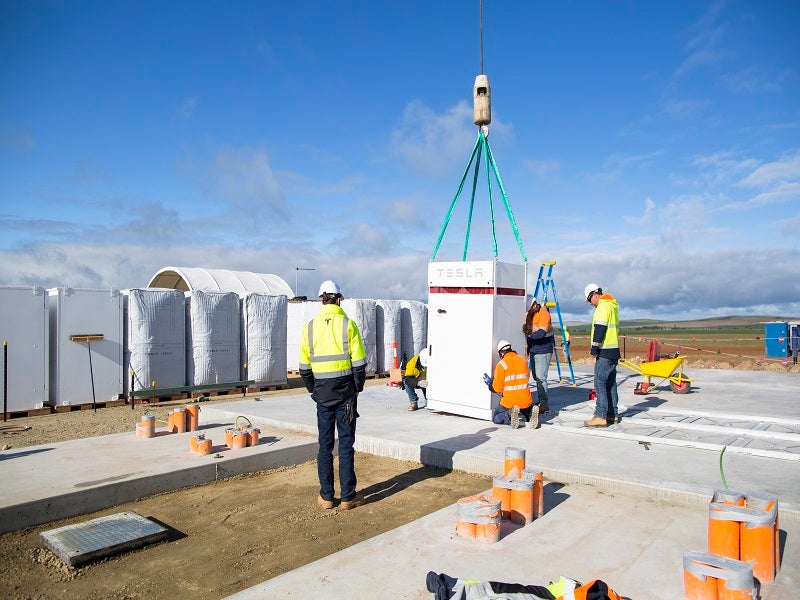

The expansion project is expected to be completed in 2020. Image courtesy of Government of South Australia.

The 100MW Hornsdale Power Reserve is the world’s largest lithium-ion battery power reserve located at the 315MW Hornsdale wind farm in Jamestown, Southern Australia.

Owned and operated by Neoen Australia, the power reserve was commissioned in December 2017. It is being expanded with a capacity of 50MW/64.5MWh to improve the reliability of the power system and provide grid stabilisation.

The expansion project is being undertaken by Neoen, Tesla and the South Australian Government under an agreement signed in 2019. It is expected to become operational by 2020.

Hornsdale Power Reserve location and site details

The Hornsdale Power Reserve is co-located in the vicinity of Hornsdale wind farm in the Hornsdale locality of Jamestown in South Australia.

The reserve farm has a site area of 74km2 that extends approximately 15km in north-south direction and approximately 8km in the east-west direction.

Hornsdale Power Reserve project make-up

The Hornsdale Power Reserve lithium-ion storage battery is rated at 100MW discharge and 80MW charge with a storage capacity of 129MWh (megawatt hours). The capacity of the battery contributes approximately 75 minutes at full discharge.

The battery can inject power in 0.14 seconds to maintain grid stabilisation. It also connects to the 275kV network connection point corresponding to the wind farm.

The electricity from the power reserve is delivered to the Mount Lock substation located 100m away through underground cabling.

Hornsdale Power Reserve expansion project details

The installation of battery components has been completed as of March 2020. Site works required to connect and test the expansion are currently ongoing. These works required outage of the existing battery, which was timed during a period of average demand. Commissioning and testing works will begin thereafter to commence regular services.

The expanded power reserve will feature Tesla’s Virtual Machine Mode, which enables state-of-the-art power inverters to imitate the existing inertia services provided by South Australia’s ageing fossil fuel power plants. It will deliver the much needed inertia that is critical to ensure grid stability during fluctuations in demand and supply.

Hornsdale power reserve finance

The Australian Renewable Energy Agency (ARENA) provided £6.25m ($8m) in funds for the expansion of the Hornsdale Power Reserve in November 2019.

The state government of Southern Australia provided approximately £11.73m ($15m) for the expansion.

The project is also set to receive £11.58m ($15m) over five years from South Australian Government’s Grid Scale Storage Fund.

Clean Energy Finance Corporation (CEFC) has committed £26.3m ($50m) in project finance for the expansion project.

Contractors involved

Tesla signed an agreement with Neoen Australia for supply of the initially installed 100MW/129MWh lithium-ion battery for Hornsdale Power Reserve in July 2017.

Neoen signed another contract with Tesla for supply of 50MW/64.5MWh lithium-ion battery in November 2019 for the expansion of power reserve.

Consolidated Power Projects was responsible for the electrical infrastructure works of the existing power reserve.

Expansion project benefits

The project is expected to provide inertia benefits to the National Electricity Market (NEM). The Australian Energy Market Operator estimates that the South Australian grid requires 6,000 megawatt seconds (MWs) to ensure a safe operating level of inertia. The expanded Hornsdale Power Reserve is expected to provide up to 3,000MWs of inertia, upon completion.

The expansion of the Hornsdale Power Reserve will also enable higher penetration of renewable energy sources into the Australian energy grid. It will enable South Australia to tap into its wind and solar resources and support the transition towards 100% renewable energy generation by the 2030s, while reducing electricity prices for consumers.
